Wheels

Features:

Positive engagement regardless of yarn finish, dye, or lubricant when wrapped a minimum of 270 degrees and guided into the teeth of the wheel, allowing no slippage.

Self cleaning as a result of constant rotation and centrifugal force.

Made of high grade plastic compound.

Impervious to all known finishes.

No filament damage due to the cushioned grip and transfer of yarn or strand.

Controlled durability for uniform performance and life.

Automatic mean diameter compensation assures accurate measurement relating to circumference.

Exceptional dimensional stability.

4:1 and 5:1 carriers bore sizes include: 1/8, 4mm, 3/16 (standard), 5mm, 6mm, 1/4 , 7mm, 5/16, and 3/8

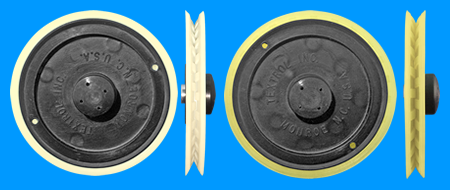

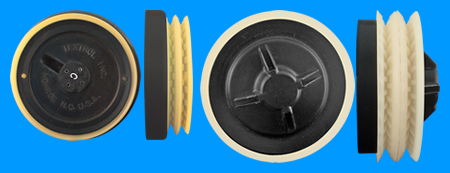

3:1 carriers bore sizes include: 1/8, 4mm, 3/16, 5mm, 6mm, 1/4 (standard), 7mm, 5/16, and 3/8

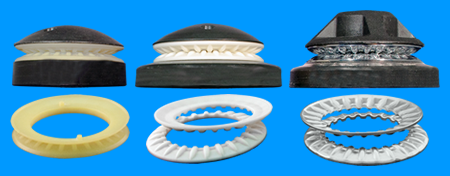

Adjustatense Wheels
wheels

Electromagnetic Tension Devices & Accessories

Permanent Magnet Tension Devices

Yarn Measuring and Tensioning
